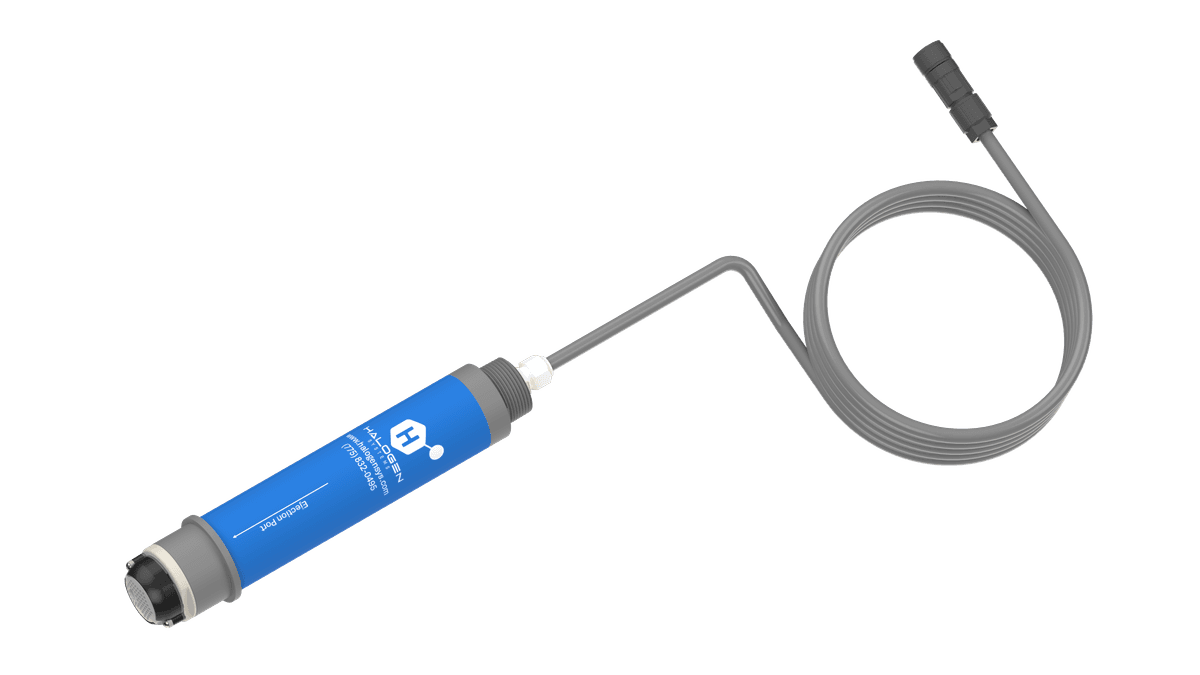

MP-TOTAL Multiparameter Total Chlorine Analyzer
The first reagentless sensor to measure total chlorine, monochloramine, AND free chlorine in a single probe. Built for utilities using chloramine disinfection.
NSF-61
The MP-TOTAL is the only sensor that can measure all three chlorine species without reagents. Utilities using chloramine disinfection no longer need separate analyzers.
No Reagents
Eliminate monthly chemical deliveries and waste disposal. Our amperometric technology requires zero liquid reagents.
Self-Cleaning (SensiCLENE)
Automated mechanical cleaning prevents biofouling and scaling, ensuring long-term stability in harsh water conditions.
6 Parameters in One Probe
Comprehensive water chemistry data from a single insertion point: Cl2 species, pH, conductivity, and temp.
Chloramine Compatible
Specifically engineered for monitoring monochloramine and total chlorine residual in complex distribution systems.
Flow Independent
Our unique sensor design eliminates the need for expensive flow control valves and constant pressure regulators.
30-Day Free Trial Available
Experience the reliability of reagentless monitoring in your own facility before committing to a purchase.
settings_input_componentTechnical Specifications
| Specification | Value |
|---|---|
| Measurement Range | Total Cl: 0-20mg/L, Free Cl: 0-10mg/L, Monochloramine: 0-10mg/L |
| Accuracy | +/- 5% of reading or 0.05 mg/L |
| Pressure | Up to 150 PSI (10 bar) |
| Flow | Independent (Flow required for cleaning only) |
| Temperature | 0°C to 50°C |
| Connectivity | 4-20mA, RS-485 Modbus RTU |
| Calibration Interval | Monthly (Recommended) |
| Maintenance | Simple Annual Replacement of Sensor Head |
Versatile Installation Options
Wet-Tap
PVC Tee
Immersion
Flow Cell
Download the MP-TOTAL Data Sheet
Get full mechanical drawings, electrical wiring diagrams, and detailed performance specifications delivered to your inbox.
Frequently Asked Questions
What is the MP-TOTAL sensor?
The MP-TOTAL is the only reagent-free sensor that simultaneously measures free chlorine, monochloramine, and total chlorine in a single probe, making it purpose-built for water utilities that use chloramine as their primary disinfectant.
Can the MP-TOTAL measure monochloramine without reagents?
Yes. The MP-TOTAL uses three-electrode amperometric technology to measure monochloramine directly — no reagents, no membranes, and no separate analyzer required.
How many parameters does the MP-TOTAL measure?
Six: Total Chlorine, Free Chlorine, Monochloramine, pH, Conductivity, and Temperature — all from a single in-pipe probe.
Is the MP-TOTAL NSF-61 certified?
Yes. The MP-TOTAL is NSF/ANSI 61 certified and EPA 334.0 compliant, making it approved for use in drinking water applications and eligible for regulatory reporting.
How does the MP-TOTAL differ from conventional chloramine analyzers?
Traditional chloramine monitoring requires separate analyzers for free and total chlorine, plus reagent consumables. The MP-TOTAL eliminates both by measuring all three chlorine species simultaneously in one probe with zero reagents.
What is the measurement range for total chlorine?
Total chlorine: 0–20 mg/L. Free chlorine: 0–10 mg/L. Monochloramine: 0–10 mg/L. Accuracy is ±5% of reading or 0.05 mg/L.
Ready to simplify chloramine monitoring?
Join hundreds of municipal utilities transitioning to reagentless sensor technology for safer, more efficient water treatment.
